| Product Parameter | Parameter Description |
| S4A Model | SK2 |
| Product Name | Standalone Access Controller |
| User Capacity | 1000 |
| Common User | 998 |
| Panic User | 2 |
| Operating Voltage | 9~18V DC |
| Idle Current | < 35mA |
| Proximity Card Reader | EM |
| Radio Technology | 125KHz Proximity Card |
| Read Range | 2~6 cm |

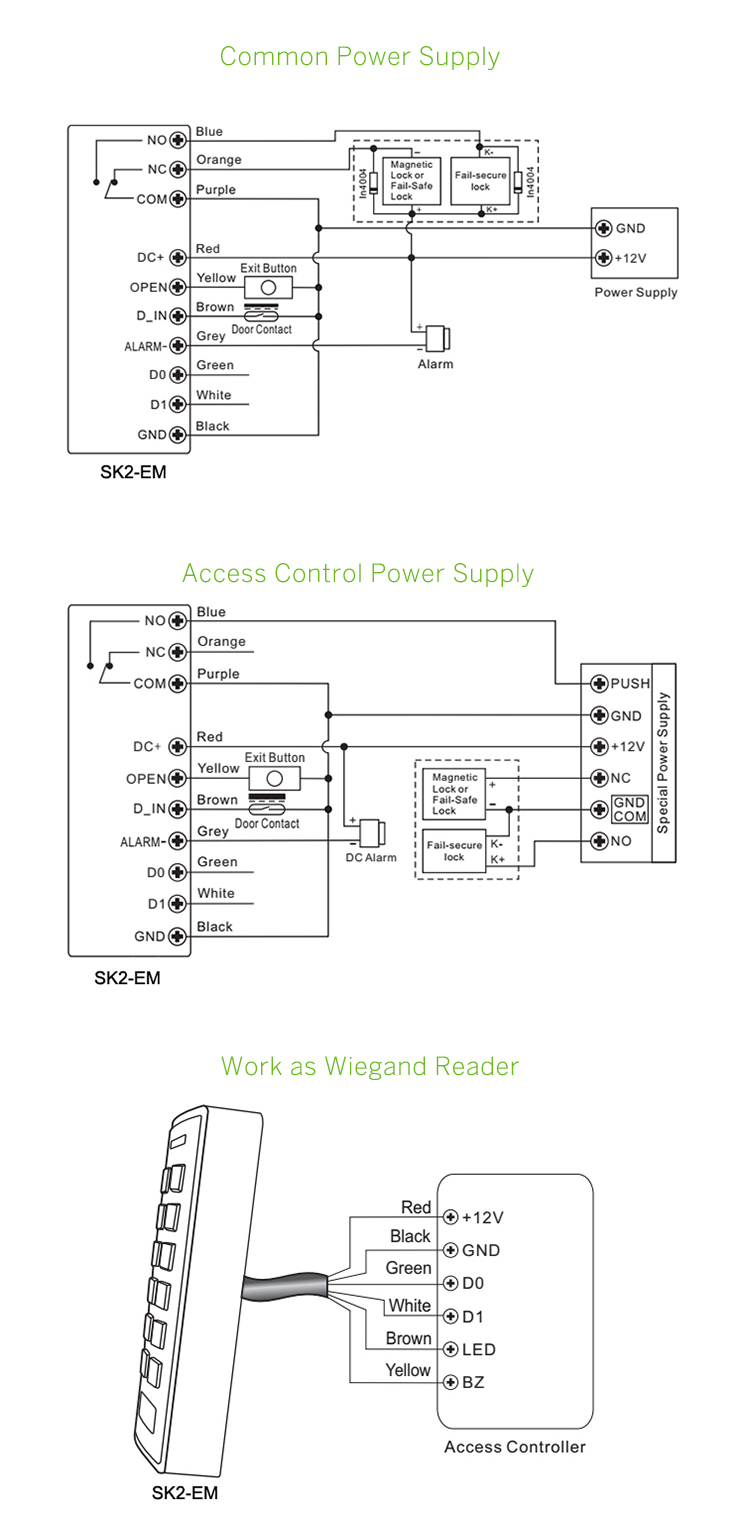

| Wiring Connections | Relay output, exit button, alarm, door contact, Wiegand input, Wiegand output |
| Relay | One (NO, NC, Common) |
| Adjustable Relay Output Time | 1~99 Seconds (5 seconds default) |
| Lock Output Load | 2 Amp Maximum |
| Wiegand Interface | Wiegand 26~37bits |
| Wiegand Input | 26~37bits |
| Wiegand Output | 26~37bits |
| PIN Output | 4 bits, 8 bits(ASCII), 10 digits Virtual Number |
| Environment | Meets IP66 |
| Operating Temperature | -40 °C ~ 60 °C (-40 °F ~ 140 °F) |
| Operating Humidity | 0%RH ~ 98%RH |
| Physical | ABS Shell |
| Color | Black |
| Dimensions | 12.2L x 5.0W x 2.1H (cm) |
| Unit Weight | 165g |
| Shipping Weight | 260g |
