Product Parameter | Parameter Description |
| S4A Model | SF5 |
| Product Name | Capacitive Fingerkey |
| User Capacity | 1000 |
| Fingerprint | 100 |
| PIN | 890 |
| Visitor | 10 |
| PIN Length | 4~6 digits |
| Operating Voltage | 12V DC |
| Idle Current | ≤ 45mA |
| Active Current | ≤ 150mA |
| Fingerprint Reader | Capacitive Fingerprint Module |
| Resolution | 500DPI |
| Identification time | <1s< td=""> |
| FAR | <1%< td=""> |
| FRR | <0.001%< td=""> |

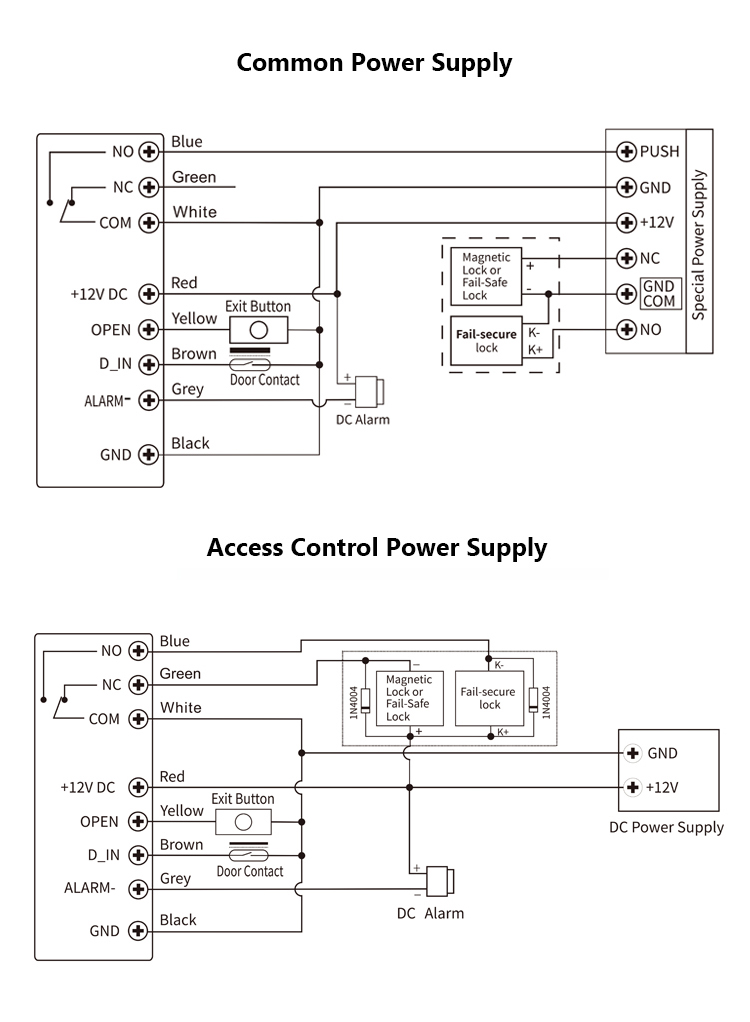

| Wiring Connections | Relay output, exit button, alarm, door contact |
| Relay | One (NO, NC, Common) |
| Adjustable Relay Output Time | 0~99 Seconds (5 seconds default) |
| Adjustable Alarm Output Time | 0~3 Minutes (default: 1 minute) |
| Lock Output Load | 2 Amp Maximum |
| Alarm Output Load | 5 Amp Maximum |
| Environment | Meets IP66 |
| Operating Temperature | -25°C ~ 60°C (-13°F ~ 140°F) |
| Operating Humidity | 20%RH ~ 90%RH |
| Physical | Zinc-Alloy |
| Surface Finish | Powder Coat |

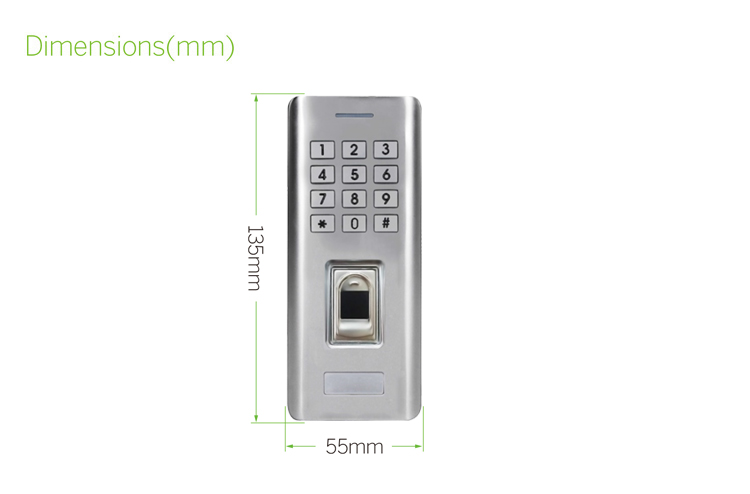

| Dimensions | L135 x W55 x H25 (mm) |
| Unit Weight | 425g |
| Shipping Weight | 506g |
