| Product Parameter | Parameter Description |
| S4A Model | SF7 |

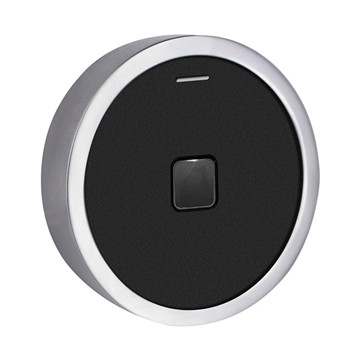

| Product Name | Mini Fingerprint Access Control |
| User Capacity | 1000 |
| Fingerprint | 100 |
| Card | 890 |
| Visitor | 10 |
| Operating Voltage | 12V DC |
| Idle Current | < 45mA |
| Proximity Card Reader | EM |
| Radio Technology | 125KHz Proximity Card |
| Read Range | 1~4 cm |
| Fingerprint Reader | Capacitive Fingerprint Module |
| Resolution | 500DPI |
| Identification time | <1s |
| FAR | <1% |
| FRR | <0.001% |

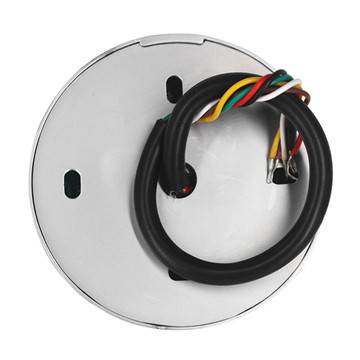

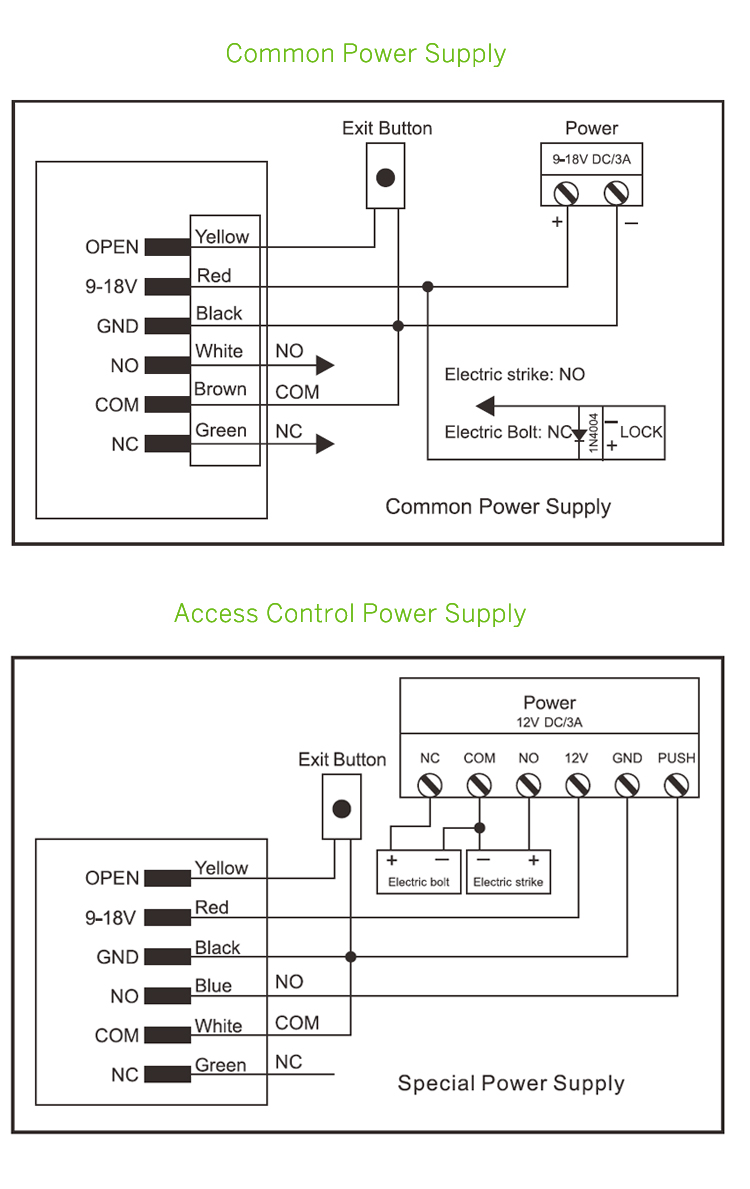

| Wiring Connections | Relay output, exit button, alarm, door contact |
| Relay | One (NO, NC, Common) |
| Adjustable Relay Output Time | 0~99 Seconds (5 seconds default) |
| Lock Output Load | 2 Amp Maximum |

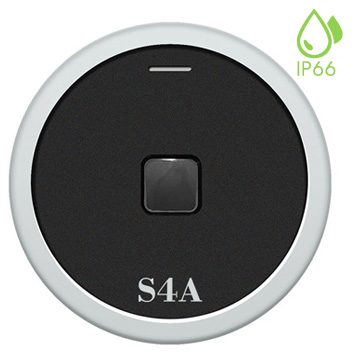

| Environment | Meets IP66 |
| Operating Temperature | -25°C ~ 60°C (-13°F ~ 140°F) |
| Operating Humidity | 10%RH ~ 99%RH |
| Physical | Zinc-Alloy |
| Color | Silver & Black |

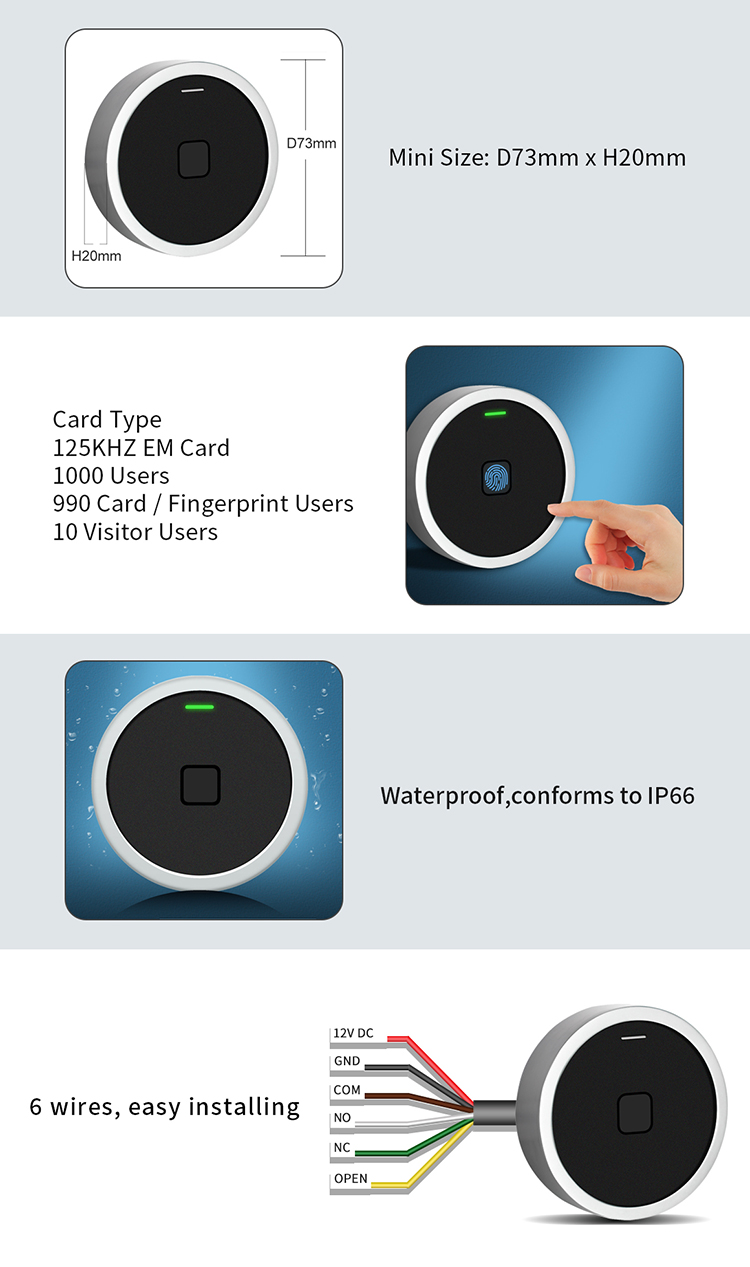

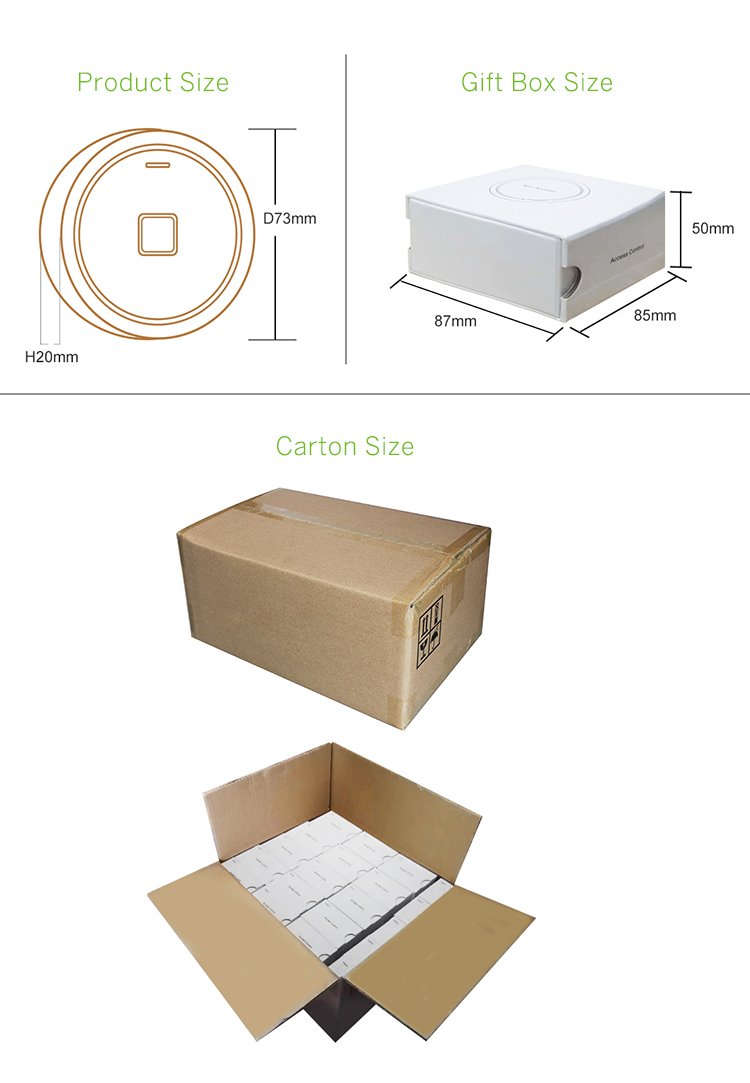

| Dimensions | Diameter 73 mm, Thickness 20 mm |
| Unit Weight | 159g |
| Shipping Weight | 228g |
