| Product Parameter | Parameter Description |
| S4A Model | UHF-05MF |

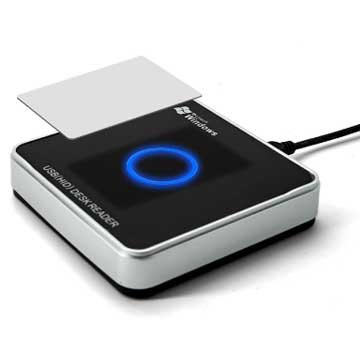

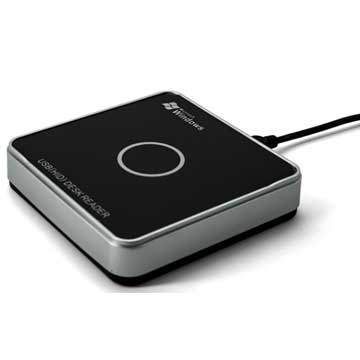

| Product Name | UHF+IC USB Desktop Reader&Write |
| Working frequency | CN standard（920～925MHz） |
| US standard（902～928MHz） | |
| Mifare-13.56MHz | |

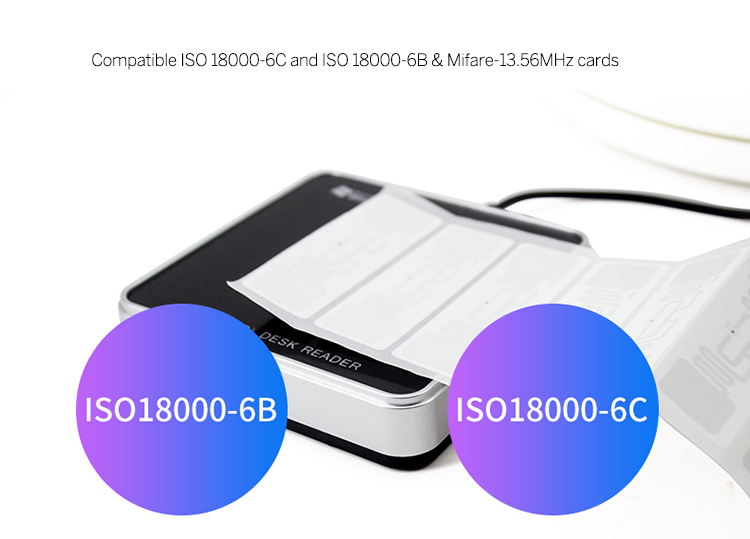

| Protocol | ISO18000-6C (EPC GEN2) |
| ISO18000-6B | |
| Operation Mode | Fixed Frequency or FHSS or Software Programmable |
| Antenna parameter | 2dBi circularly polarized antenna (built-in) |
| Output power | 12.5dBm～26dBm（Adjustable by software） |
| Reader&write range | Reading Rang(Max)：0.5m（related to the card or the environment） |
| Writing Rang(Max)：0.2m（related to the card or the environment） | |
| Working mode | Active mode |
| Passive mode | |
| Answer mode (Not recommend) | |
| Voltage | DC +5V |
| Data interface | USB to virtual keyboard input |
| USB to virtual serial port(Customized) | |
| Working environment | |
| Working Temp | -20℃～55℃ |
| Storage Temp | -40℃～85℃ |
| Physical parameter | |
| Size | 107mm×107mm×23mm |
| Net/gross Weight | 150g/250g |
| Accessories | |

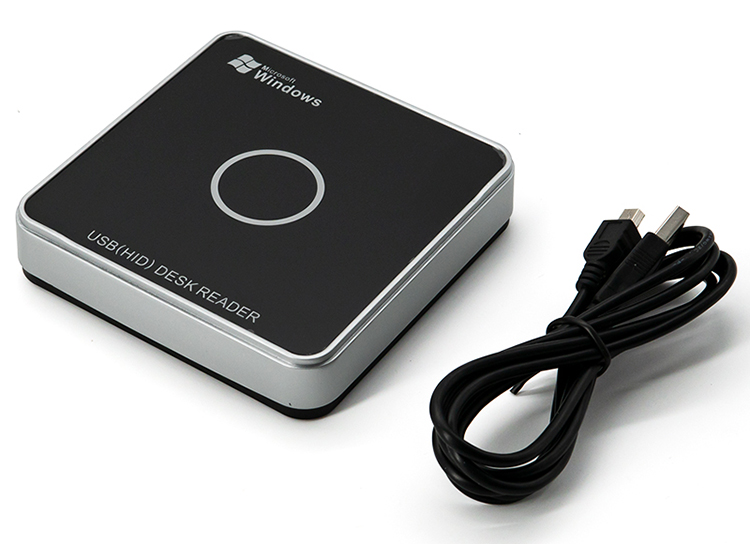

| Cable | USB cable |
| SDK | Free SDK |
