| Product Parameter | Parameter Description |
| S4A Model | MCI-109 |

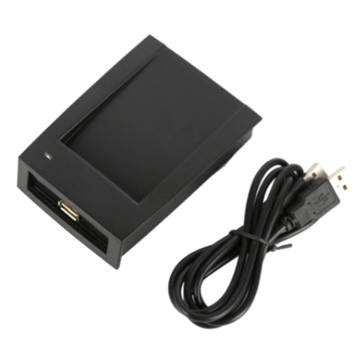

| Product Name | USB Card Issuing Device |
| FEATURES | |
| General introduction | This device is optional device for WG2000 Series Network Access Control system.If you do not use it ,the system will directly input card number automatically .With this device will improve the speed of registeration, more convenient. |
| Usage | Read the card with USD assign device in the software interface where need input the card number ,It will automatically fill out the card number for customers, need not addition drivers . |
| Notice | The reader should be far away the metal object, in case shielded RF signal and will effect the reading distance, Computer monitor radiation will effect the reading distance also. |
| PARAMETERS | |
| Communication Type: | USB Connection |
| Power: | Directly with USB port (5VDC <100MA) |
| Output Format: | Standard keyboard format wiegand26 8 bit card numbe |
| Input Format: | EM-ID , Mifare (compatible) |
| Reading Range: | 1-6 CM |
| Working Tempreture: | -40℃ to 70℃ |
| Working Humidity: | 0-95% |

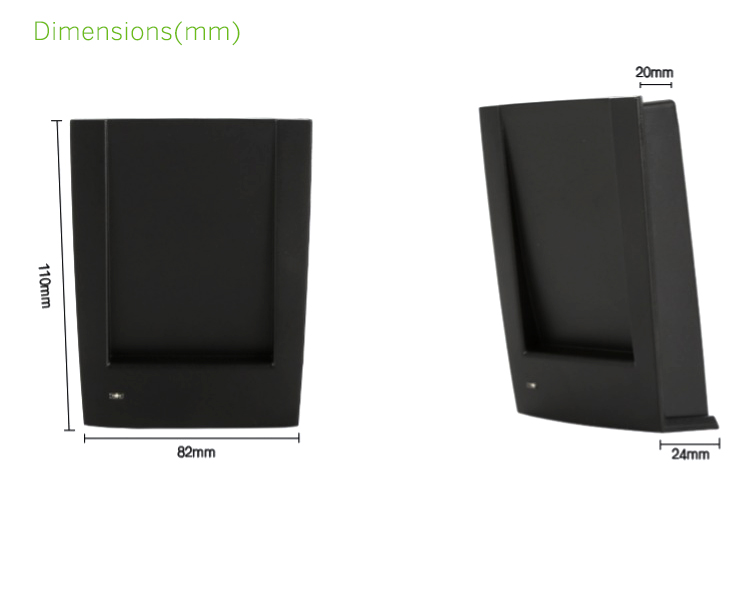

| Unit Size | 106mm * 82mm * 25mm |
