型号:
D5 / D5N品牌:
S4A| Product Parameter | Parameter Description |
| Product Name | Waterproof Wireless DIY Lock Kit |
| S4A Model | D5 |
| User Capacity | 500 PIN/card users |
| PIN Length | 4~8 digits PIN |
| Card Type | 125KHz EM card |
| S4A Model | D5N |
| User Capacity | 100 PIN/card users |
| PIN Length | 4~6 digits PIN, |
| Card Type | 125KHz EM or 13.56MHz Mifare card optional |
| Operating Voltage | |
| Wireless Keypad | 3 units of AAA batteries |
| Wireless Lock | 2 units of AA batteries |
| Remote Transmitter | 1 unit of 2032 Lithium battery |
| Idle Current | All items < 10uA |
| Working Current | |
| Wireless Keypad | < 50mA |
| Wireless Lock | < 60mA |
| Remote Transmitter | < 3mA |
| Communication Frequency | 433MHz |
| Communication Distance | 50m Maximum |
| Operating Temperature | |
| Wireless Keypad | -40°C~+60°C (-40°F~+140°F) |
| Wireless Lock | -20°C~+60°C (-4°F~+140°F) |
| Operating Humidity | 0%~86%RH |
| Physical | |
| Wireless Lock | Zinc-Alloy |
| Wireless Keypad | Zinc-Alloy (IP66) |
| Remote Transmitter | ABS |

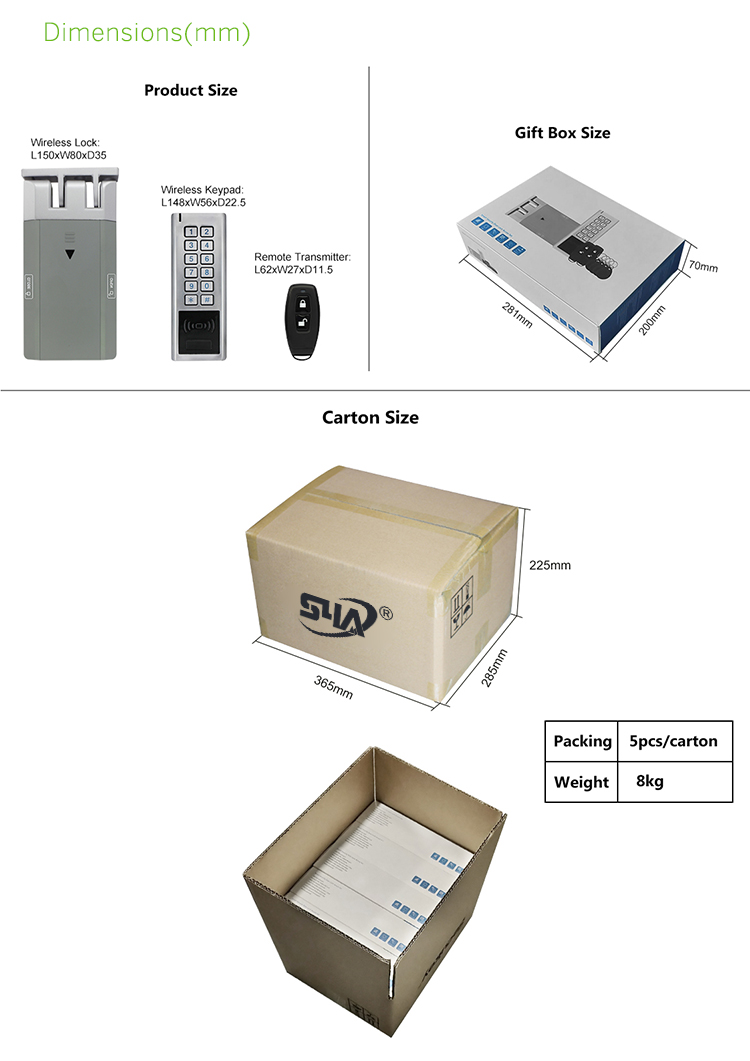

| Dimensions | |
| Wireless Keypad | L148 x W56 x D22.5(mm) |
| Wireless Lock | L150 x W83 x D38(mm) |
| Remote Transmitter | L62 x W30 x D11.5(mm) |
| Unit Weight | |
| Wireless Keypad | 285g |
| Wireless Lock | 800g |
| Remote Transmitter | 25g/pc |
