| Product Parameter | Parameter Description |
| S4A Model | SK7 |

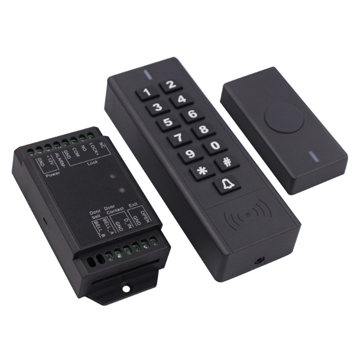

| Product Name | Wireless Keypad Access Control Kits |
| User Capacity | 600 PIN / card users (500 common users + 100 visitor users) |
| PIN Length | 4~8 Digits |
| Card Type | 125KHz EM Card |
| Wireless Keypad | 3units of AAA batteries |
| Mini Controller | 12V DC |
| Wireless Exit Button | 2032 Lithium battery |
| Idle Current | Wireless Keypad:<10ua |
| Mini Controller:<20mAA | |
| Working Current | Wireless Exit Button:<10ua |
| Wireless Keypad:<80mAA | |
| Mini Controller:<50ma | |
| Wireless Exit Button:<30uA | |
| Communication Frequency | 433MHz |
| Communication Distance | 50m Maximum |
| Relay Contact Load | 2Amp Maximum |
| Environment | Outdoor (Wireless Keypad) |
| Operating Temperature | -40oC~60oC(-40oF~140oF) |
| Operating Humidity | 10%~9%RH |
| Physical | ABS Shell |
| Dimensions | Wireless Keypad: L134 x W48 x D25(mm) |
| Mini Controller: L85 x W50 x D25(mm) | |
| Wireless Exit Button: L80 x W38 x D15(mm) | |
| Unit Weight | Wireless Keypad: 150g |
| Mini Controller: 62g | |
| Wireless Exit Button:34g | |
| Shipping Weight | 300g |
