| Product Parameter | Parameter Description |
| S4A Model | SK4-R ID+HID |
| Product Name | Wiegand Reader (EM+HID) |
| Frequency | 125KHz + HID |
| Card Type | EM & HID Cards/Fobs |
| Read Range | 4~8 cm |
| Standby Current | < 35mA |
| Operating Voltage | 9~18V DC |
| Wiegand Output Format | Wiegand 26 bits (factory default) 26~37 bits available upon request |

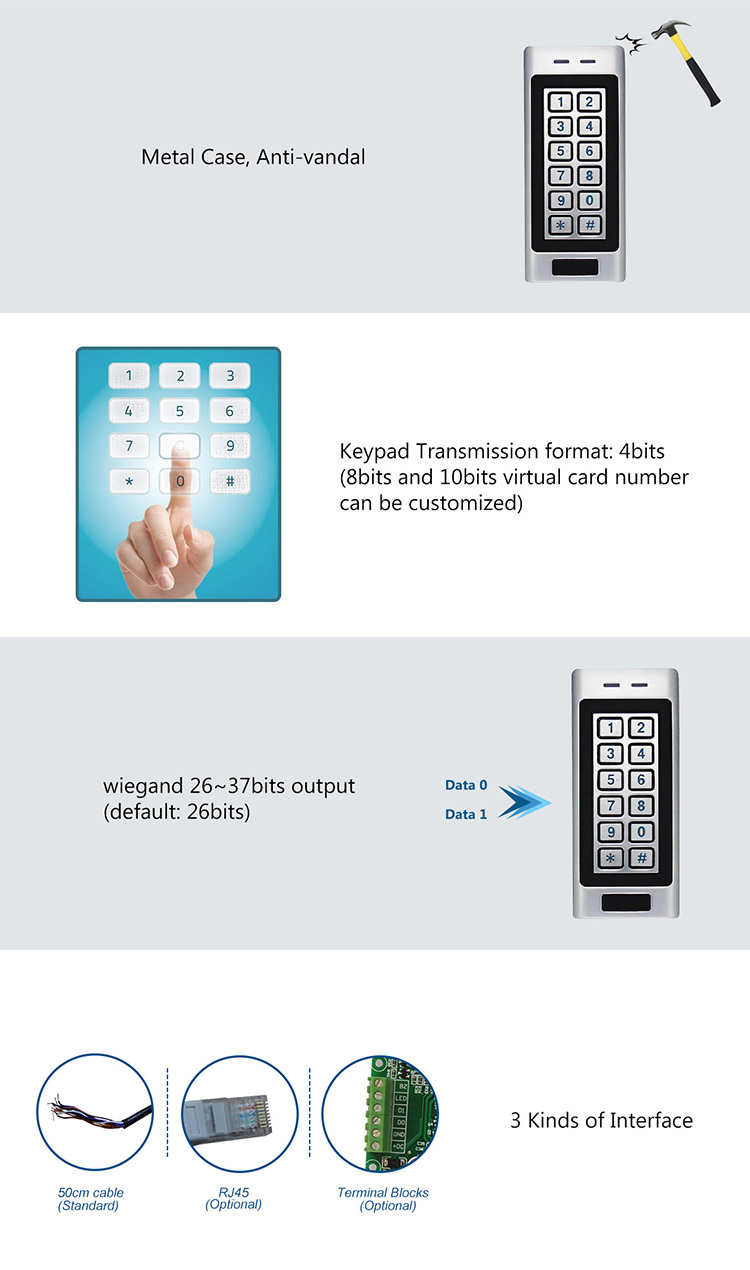

| Keypad Transmission Format | 4 bits (factory default) 8 bits or virtual card number format are available upon request |
| Operating Temperature | -40 °C ~ 60 °C |
| Operating Humidity | 0% RH ~ 96% RH |
| Index of Protection | IP66 |

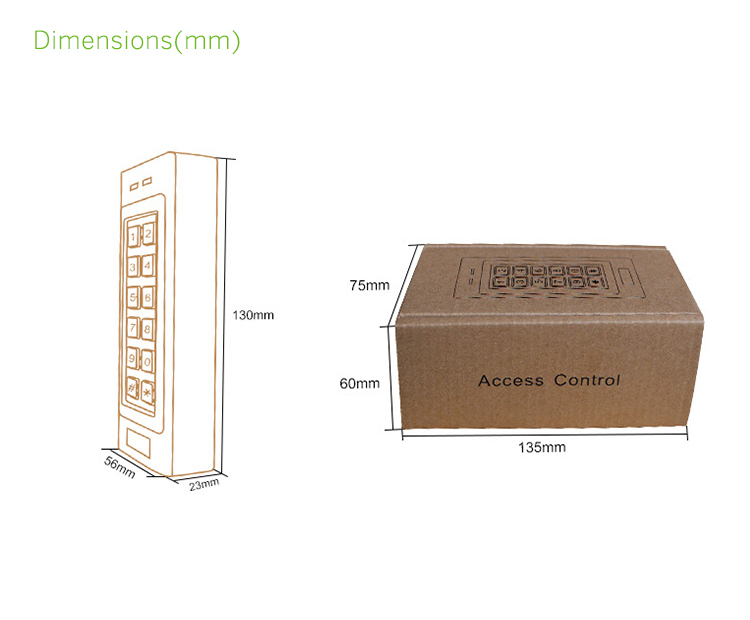

| Dimension | 13.0L x 5.6W x 2.3H (cm) |
| Net Weight | 500g |
| Shipment Weight | 650g |
| Unit Weight | 0.5KG |
| Standard Package | 20PCS/carton |
| Carton Weight | 10.4KG |
| Carton Size | 29*33*19(cm) |
