| Product Parameter | Parameter Description |
| S4A Model | SK5-RX |

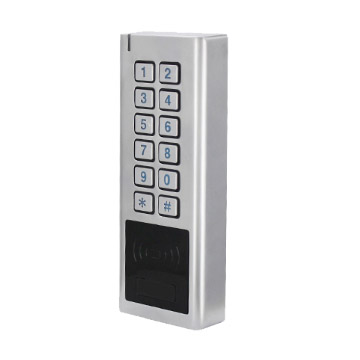

| Product Name | Wiegand Reader (EM+HID+MF) |
| Frequency | 125KHz & 13.56MHz |
| Card Type | 125KHz - EM & Hid Card 13.56MHz - Mifare Card (ISO 14443A Compatible) |
| Operating Voltage | 9~18V DC |
| Keypad Transmissio | 4 bits (factory default), 8bits or virtual card number format can be set |
| Reading Distance | 7 CM |

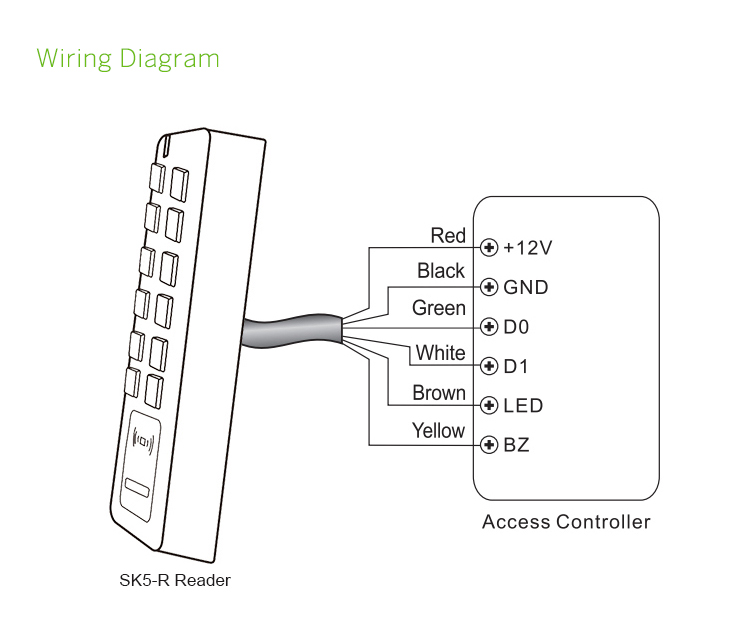

| Output Format | Wiegand 26~37 bits |
| Operating Temperature | -40 °C ~ 60 °C (-40 °F ~ 140 °F) |
| Standby Current | < 35mA |
| Operating Humidity | 0%~95% RH |
| Index of Protection | IP66 |

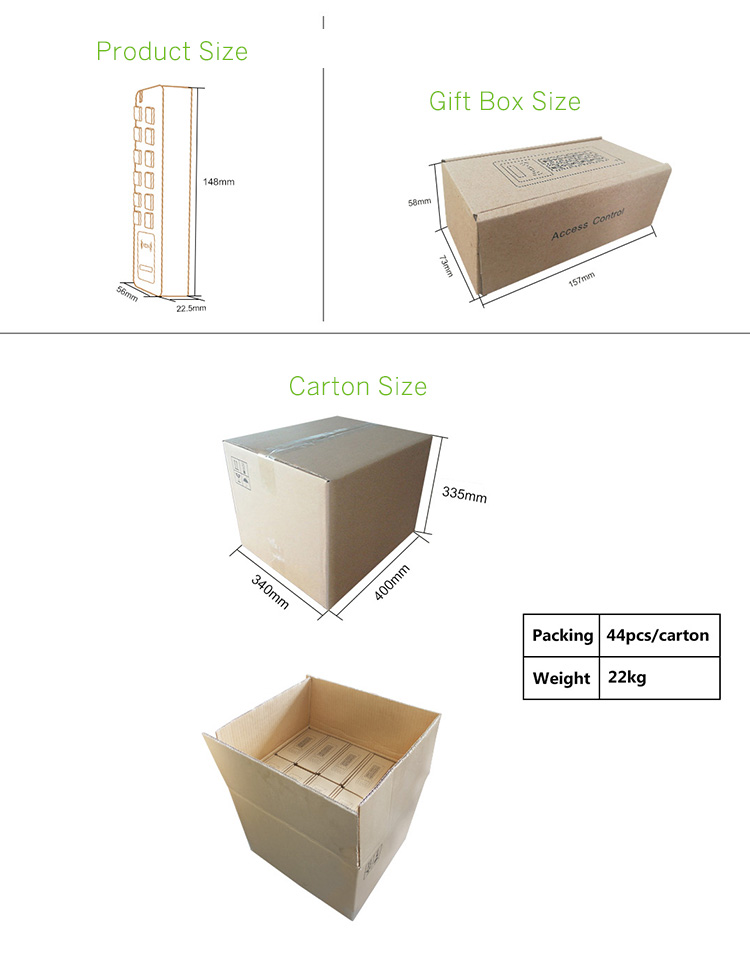

| Dimensions | 14.8L x 5.6W x 2.25H (cm) |
| Color | Silver |
| Unit Weight | 0.5KG |
| Standard Package | 44PCS/carton |
| Carton Weight | 22KG |
| Carton Size | 34*33.5*40(cm) |
